Tune M1 Truck Camper Build

Hey fellow truck camper enthusiasts, this is a brief write up on the current state of my build. You can follow along for more about my adventures in this build on my instagram.

Truck

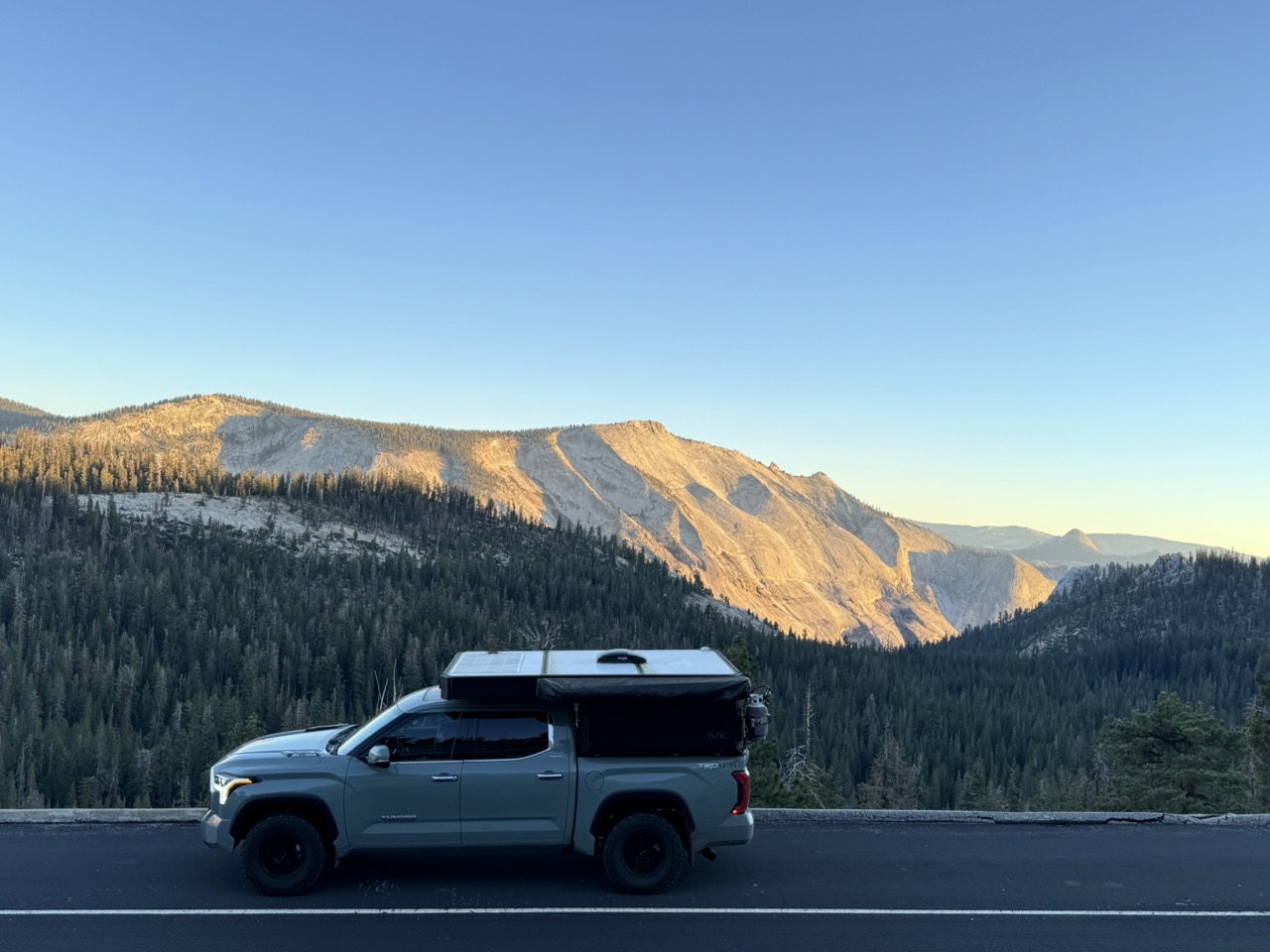

2023 Toyota Tundra TRD-Off Road Limited Hybrid (5.5ft short bed)

• Icon Suspension (2" lift)
• Icon 2.5 Front Coilovers
• Icon 2.0 Rear Shocks with Remote Reservoir and Dobinson Rear Springs (550-770lb)
• 17" Method MR705 Wheels (+35 offset)
• BfGoodrich All Terrain K02 LT285/70 R17 121S E1 (~34" diameter tire)

Camper

Tune M1 by Tune Outdoors

• Truma Varioheat Heater
• Insulation Kit
• Rear Glass Hatch
• Solid Aluminum Side doors
• Passthrough window
• (6) Vinyl Windows
• 7000k Max-Air Fan
• King Bed Extender

Exterior

• OVS 270 Awning
• Joolca On-suite Mounted Shower Enclosure
• Joolca Hottap V2

Interior

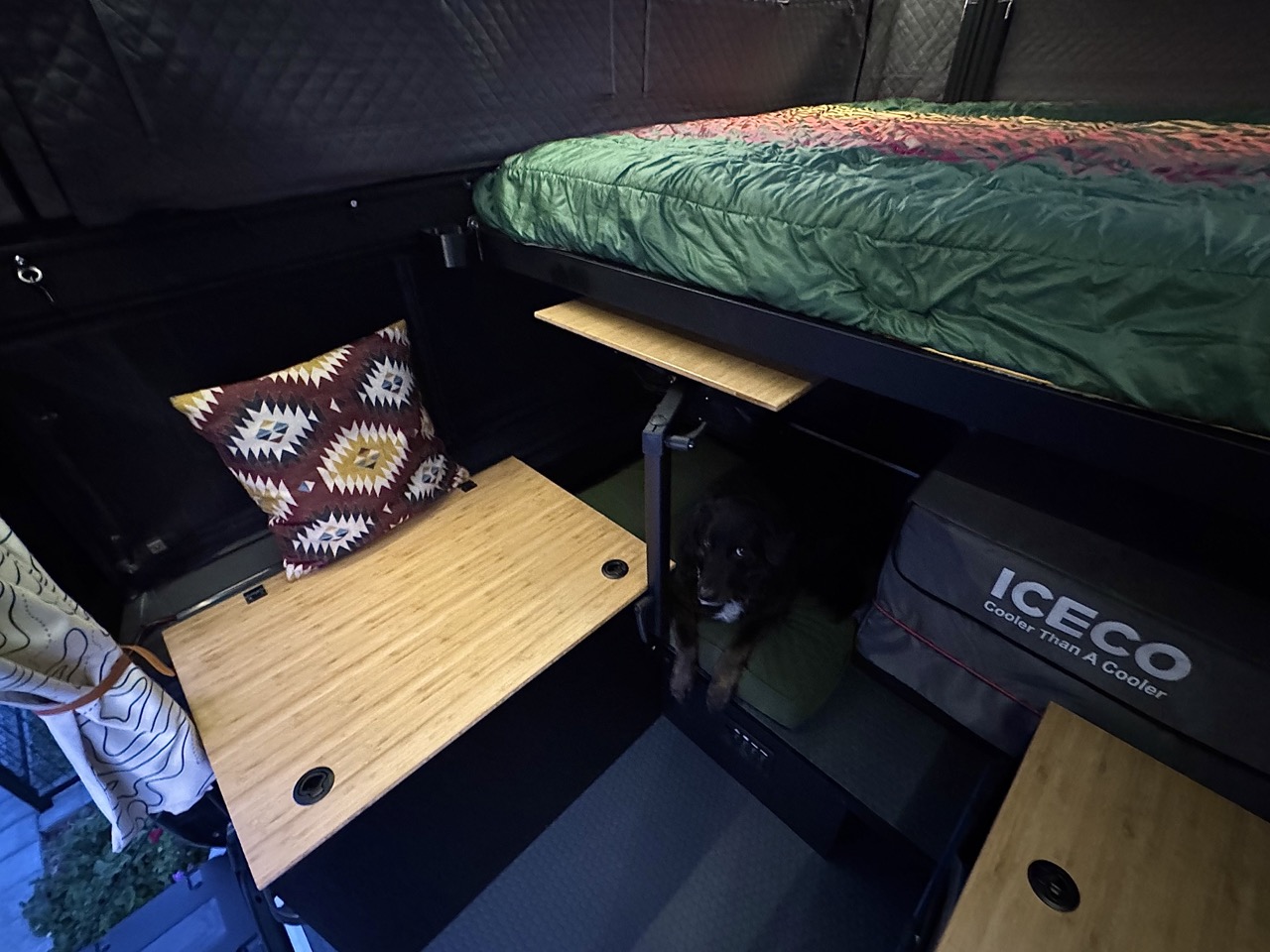

Floorplan

• 2 benches

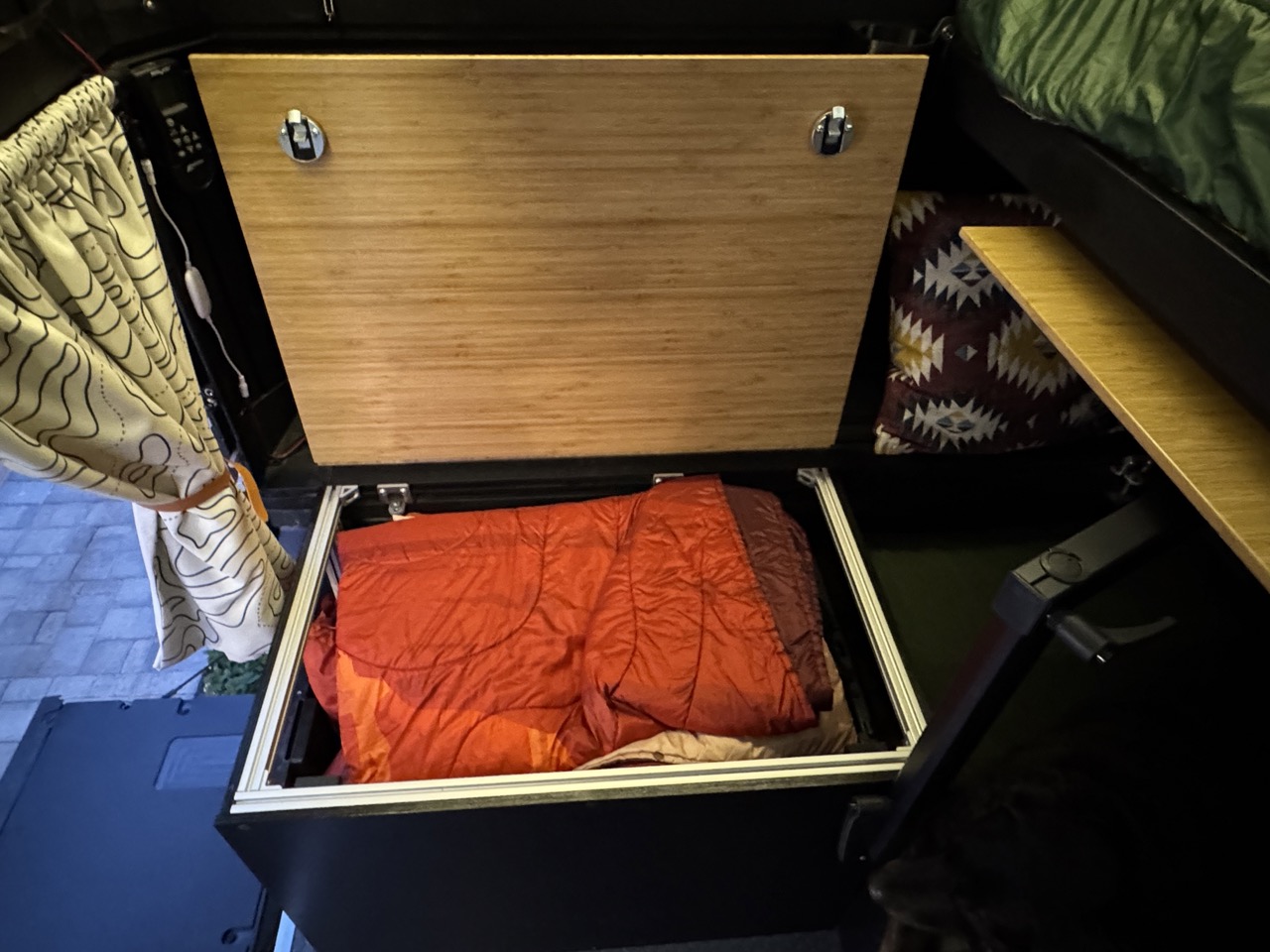

• Gear garage (interior and exterior access)

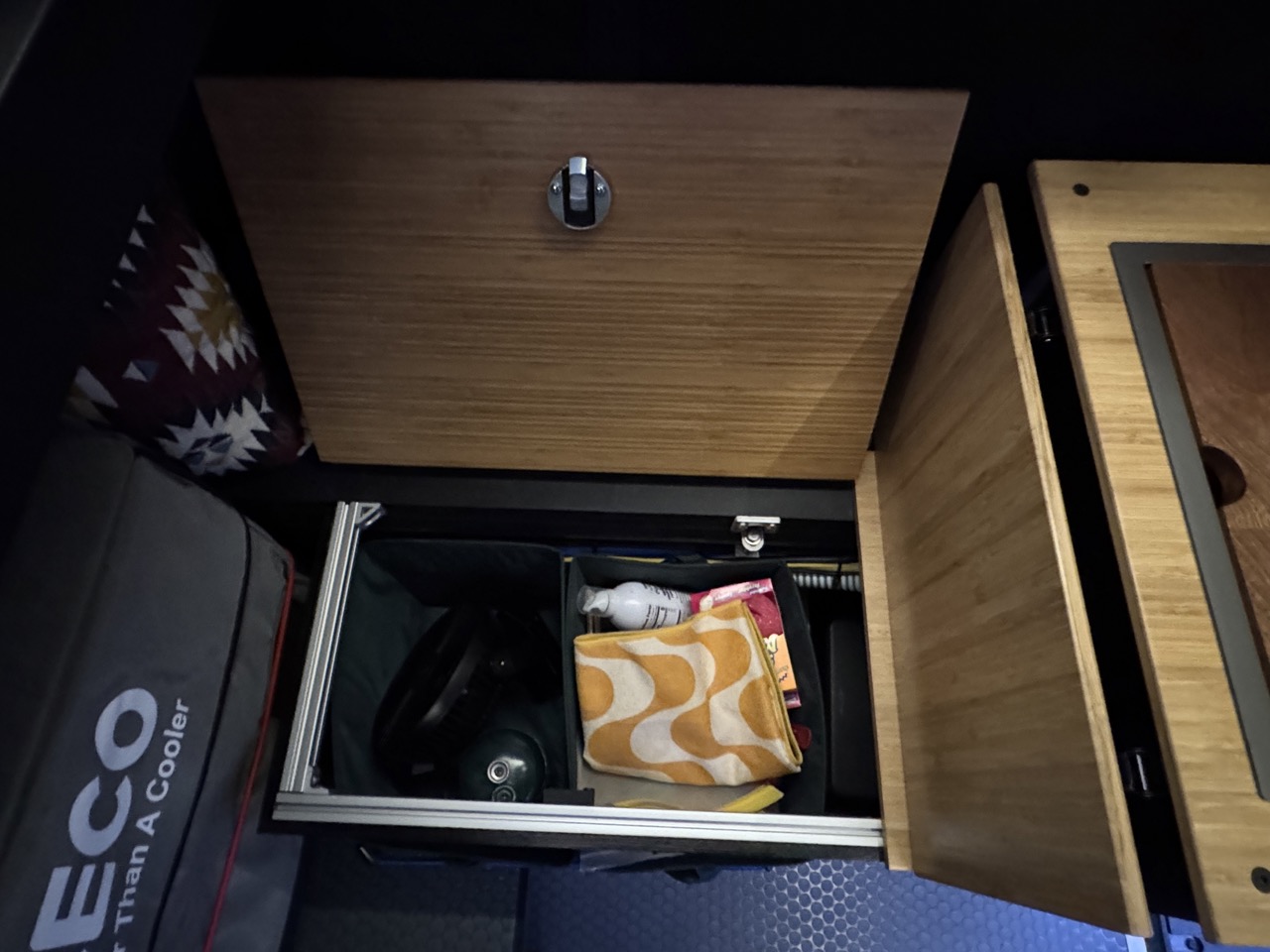

• Pantry & Extra Storage

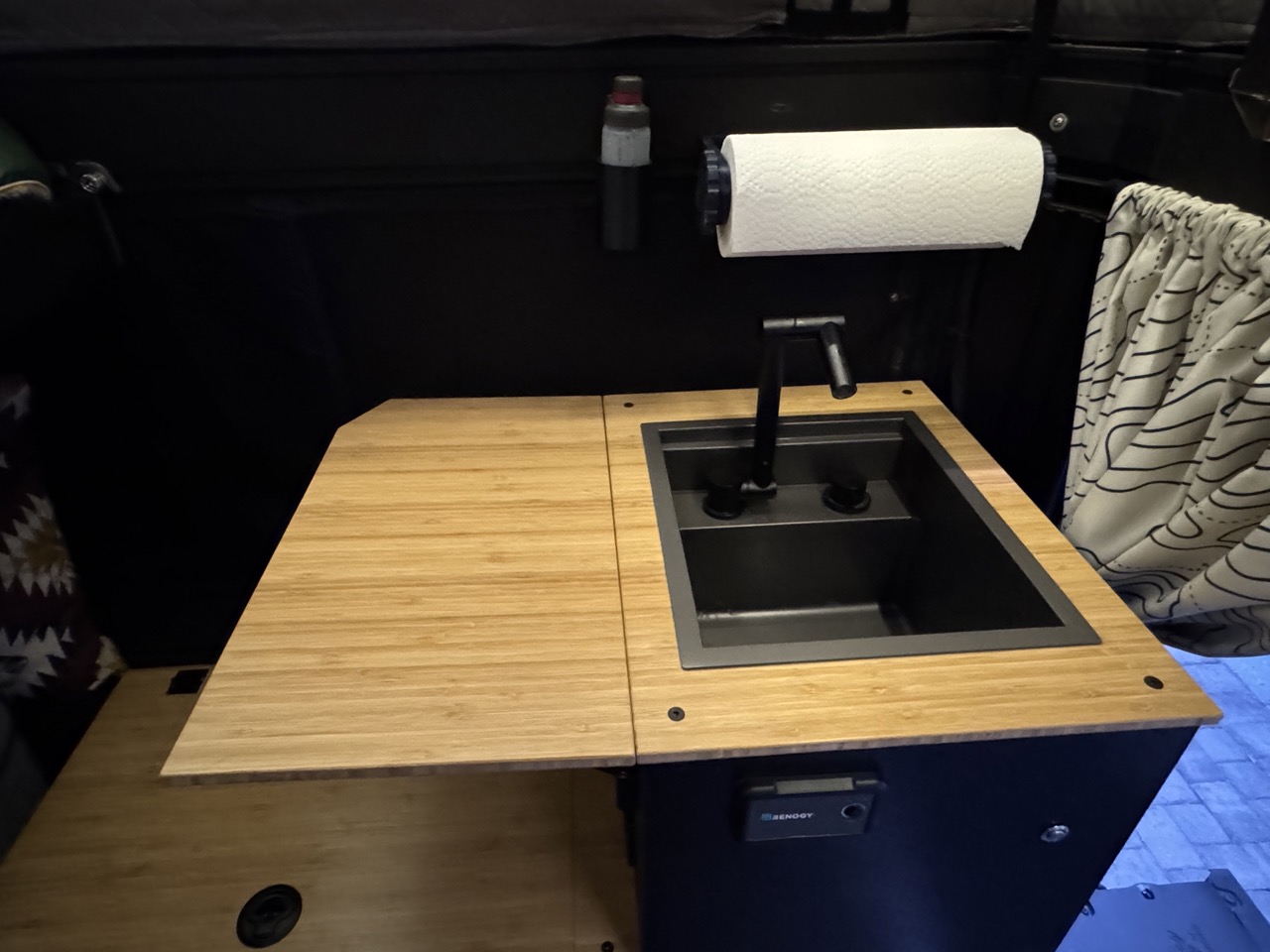

• Full Sink
• Flip-up Counterspace
• Dog sleeping platform
• Fridge platform
• Pivoting Lagun Table

Water System

I’ve designed a compact yet versatile water system for my setup, starting with a 25-gallon fresh water tank connected to the sink via PEX plumbing. The system also features a flush-mounted exterior water output, perfect for showers under the stars or rinsing off after a muddy trail.

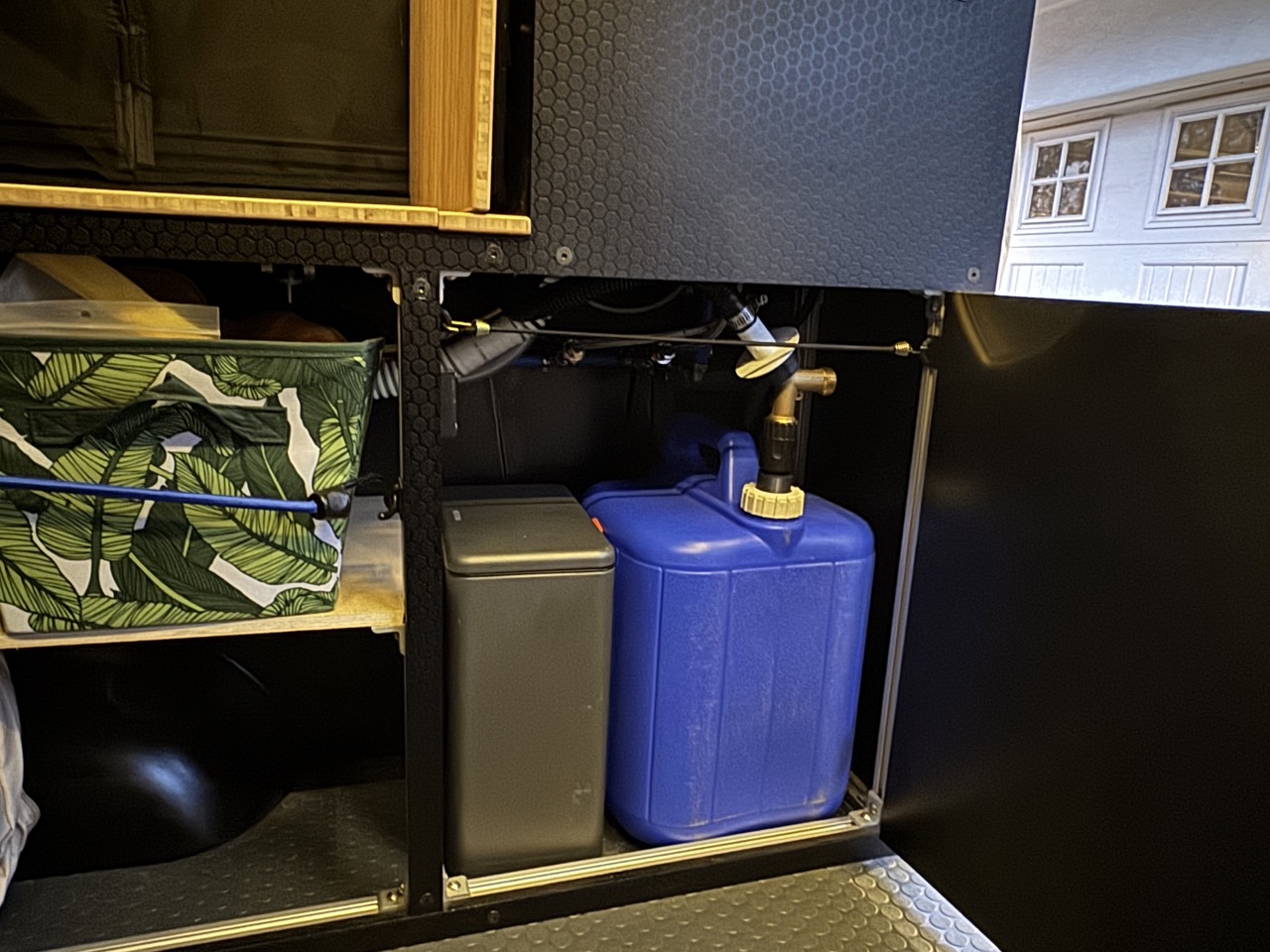

For grey water, I’m using a 5-gallon Coleman tank paired with a custom 3D-printed quick-connect adapter, making it super easy to detach and empty.

The inspiration for this system came largely from this awesome guide, though I swapped in a few alternative components to better suit my needs.

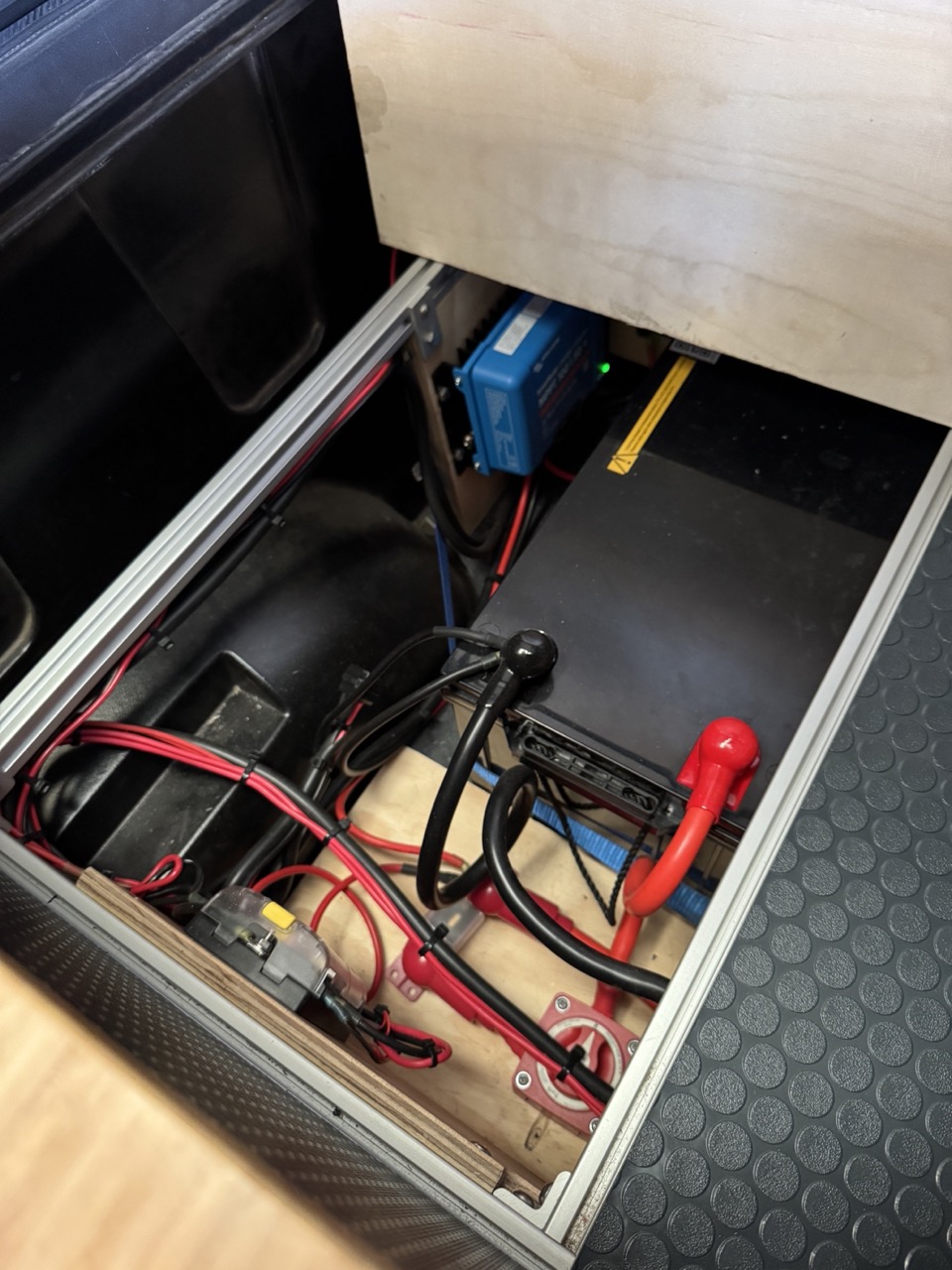

Electrical System

• 280ah Lithium Battery with BMS (Eco-Worthy Battery)
• (2) 200w Renogy Solar panels
• 2000W Renogy Inverter
• 100V 50A Victron MPPT Solar Charge Controller (Bluetooth)
• (1) AC Outlet

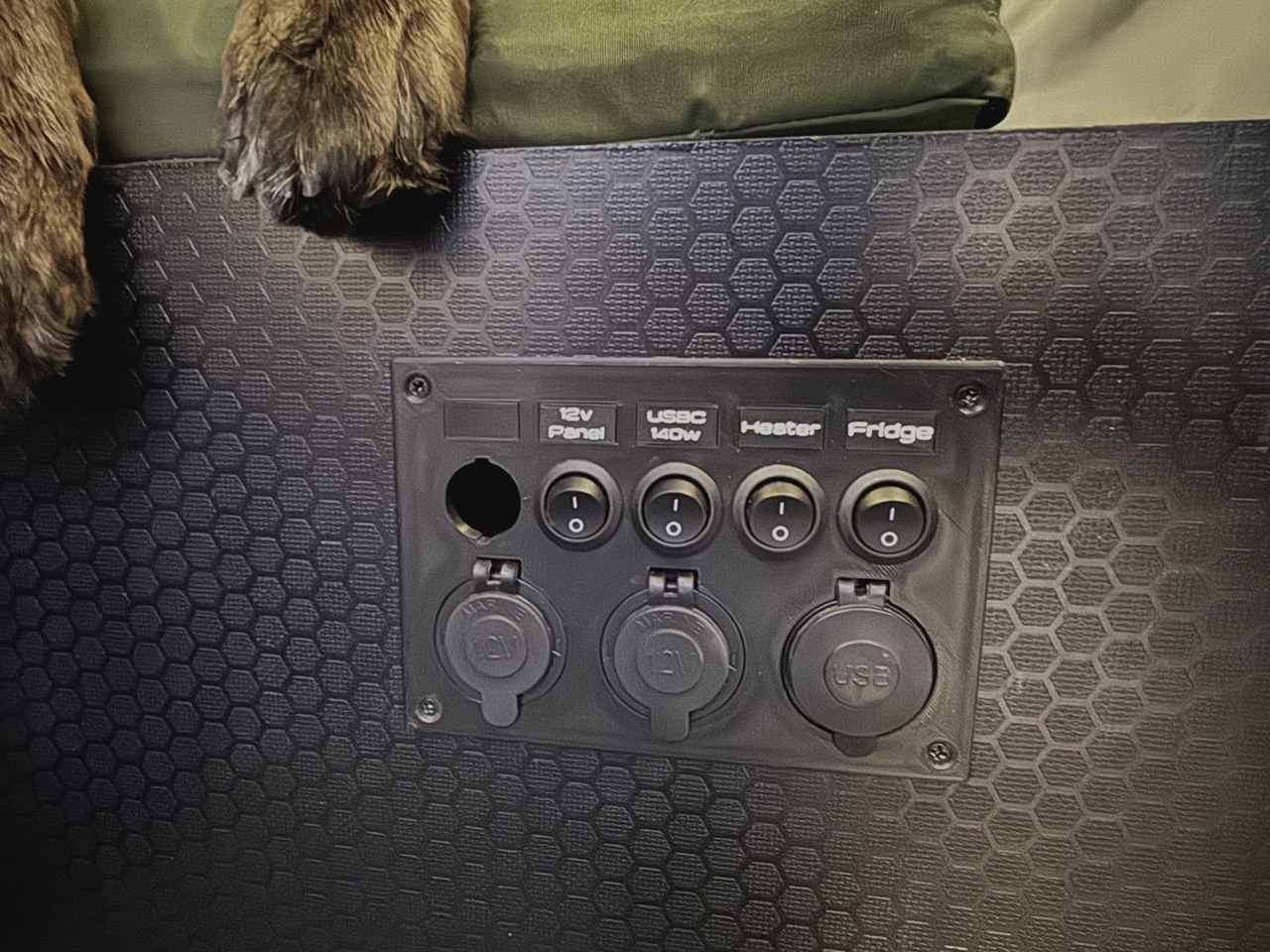

• 12V DC Subpanel with multiple 3d printed switch plates

Other Custom Upgrades

• Remote-Controlled Lighting: Illuminate the space at the touch of a button from the entrance or within bed and still keep all the dimming capabilities of the Tune lighting system.
• Custom Topographic Curtains
• 3D-Printed Accessories Galore: From soap bottle holder to cup holders, dimmer remote mount, coat hooks, curtain rod brackets, and paper towel holder—every detail has been thoughtfully designed and printed for maximum utility.
• Magnetic Mosquito Netting: For hot summer days I can enjoy fresh air without the bugs, thanks to custom-fit bug screens for the side doors.

Parts List

Water System

This does not include all fittings. Some fittings are very project specific. Take a look at this awesome guide for more detail.

Cabinetry Build

Tip: When ordering extrusions, have them cut to 94" and it will save you tons on shipping.

Flooring

Hardware

Electrical

Other Gear

Last Updated: January 25th, 2025
